BIOS SPECIFICATION
6-29

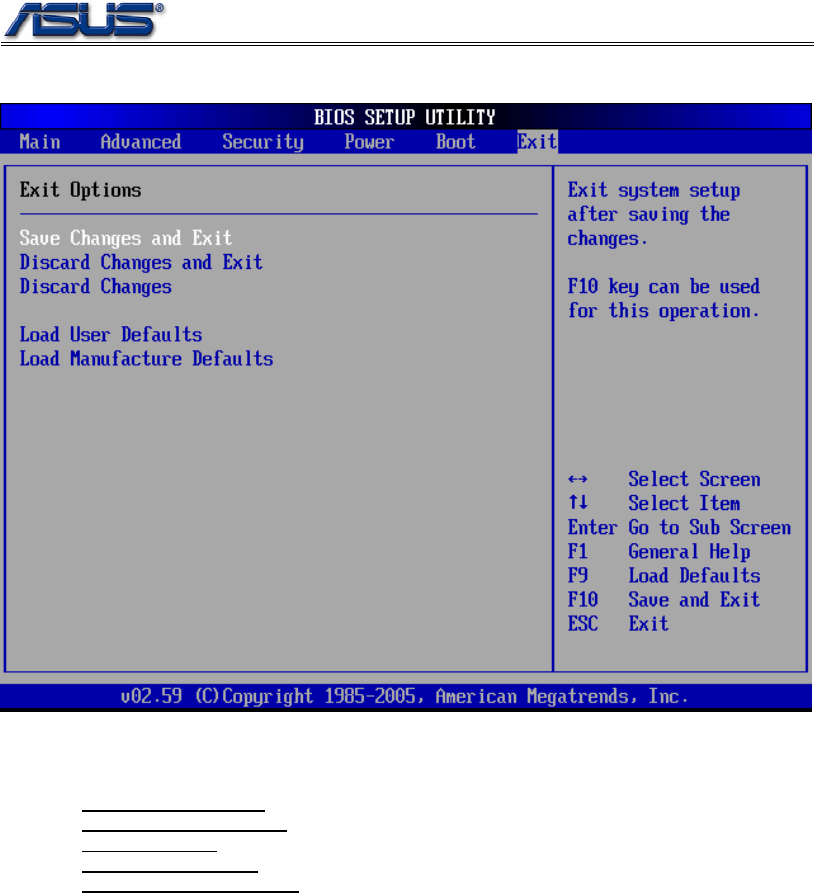

7.6 EXIT MENU:
Exit BIOS setup, users may make final decision if they want to save the change just made, or load
BIOS default setting, lists are:
Save changes and Exit
Discard changes and Exit
Discard changes
Load optimal Defaults
Load manufacture Defaults
